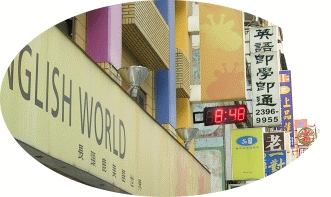

1. Outdoor GPS LED clock display-4 digits (Double sides)

T8 LED Lighting LED GPS Clock Multiline LED Displays

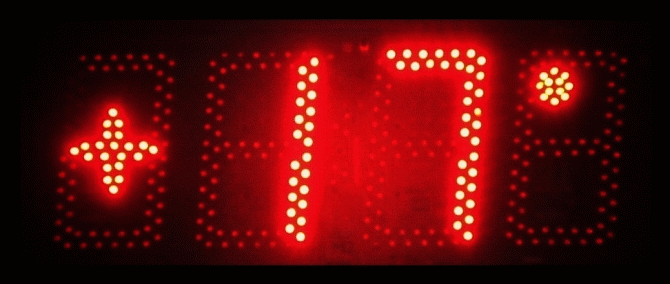

Model No. CLK-1604-D

LED Video Sign Board

Model No. CLK-2604-A

Specification:

LED dot size	5mm
LED color	Red
LED lamp numbers	325 lamps/per side/4 digits (650 lamps for double sides)
LED brightness	2,500+ mcd/lamp (super brightness)
Digit size	160 mm
Viewing distance	10M+
Display function	Date, Time, Temperature alternately
Power consumption	Normally 35W, Max 60W
Power input	AC 220V
Control way	Infrared remote control keyboard
Cabinet size	680 mm (W) x 286 mm(H) x 130 mm(D)
Operation temperature	-10℃ ~ + 50℃
Temperature sensor	Included
Automatic brightness control attached
Internally controlled ventilation fan included
Memory back-up 180 days
Waterproof casing easy to be installed outside the stores.
GPS antenna for automatic time adjustment

2. Indoor LED clock system

LED Lighting Manufacturer

Model No.: CLK-0406A

Specification:

Digit Size	4.0" height per digit, 6 digits per set
Color	Red
Network Connection	GPS module included, connects to the slave clocks through wireless module
Outer Cabinet	Aluminum cabinet (63 cmx 24 cm x 8 cm) Included
Function	One master GPS clock connects at least 30 slave clocks, the maximum is 255 clocks. The distance of each clock can be up to 100m above. When off line, the clock remains working 48 hours above. Infrared remote control keyboard attached for user in reserve. Synchronize time display.

Model NO.: CLK-0406A-Slave

Specification:

Digit Size	4.0" height per digit, 6 digits per set
Color	Red
Network Connection	Infrared remote control keyboard
Outer Cabinet	Aluminum cabinet (63 cmx 24 cm x 8 cm) Included
Function	Synchronize with master GPS clock. When off line, the clock remain working 48 hours above. Infrared remote control keyboard attached for user in reserve.
